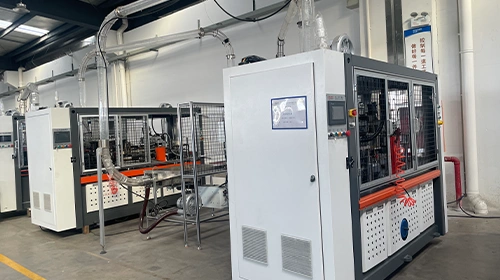

Ice Cream Paper Cup Making Machine

XSL-16TS ice cream paper cup making machine features a hygienic tabletop design with servo feeding and PLC control, delivering stable production for small-size cups from 2.5 oz to 9 oz.

Machine Speed :

130-160 pcs/min
Paper Cup Sizes :

2.5OZ-9OZ
Rated Power :

18 Kw

Product Description

Tabletop layout isolates forming from transmission for clean, low-maintenance operation. Servo feeding and PLC with photoelectric sensors ensure precision. Automatic spray lubrication extends part life. Optional vision inspection rejects defects. Reliable for coffee shops and beverage factories.

Machine Highlights

Hygienic Tabletop Design:

Separates forming from transmission parts for clean operation and easier maintenance.

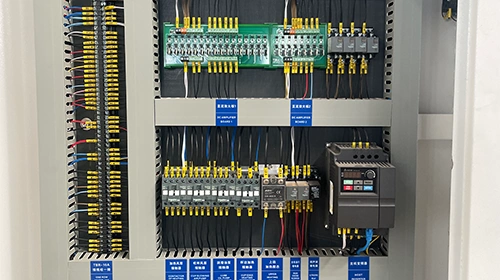

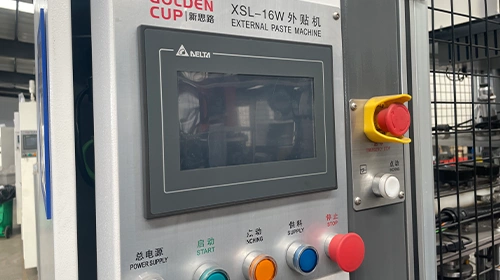

Precision Servo & PLC Control:

Servo feeding, PLC, and photoelectric sensors ensure accurate cup forming and process monitoring.

Automatic Lubrication System:

Spray lubrication extends component life and reduces routine maintenance.

Optional Vision Inspection:

Automatically rejects defective cups, improving overall quality control.

Technical Specifications

Model	XSL-16TS
Paper Cup sizes	2.5OZ-9OZ

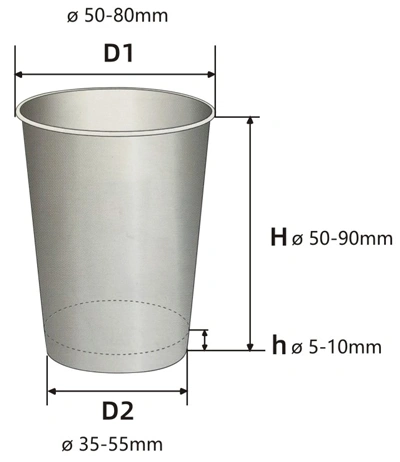

Paper Cup Forming Size
Upper Mouth Diameter	50-80mm
Cup Bottom Diameter	35-55mm
Forming Height	50-90mm
Machine Speed	130-160pcs/min
Machine Net Weigh	2800kg
Power Supply	380V 50Hz 3Phase
Rated Power	18Kw (6kw/per hour)
Air Consumpion	0.6-0.8 Mpa
Machine Size	L3500W1400H1900mm
Paper Grams	150-380gsm single (double) PE/PLA paper

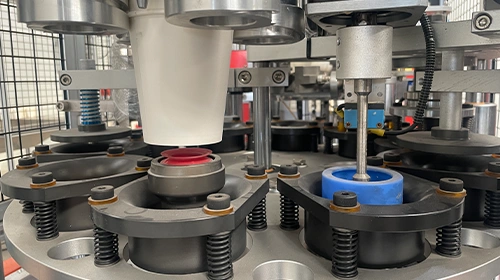

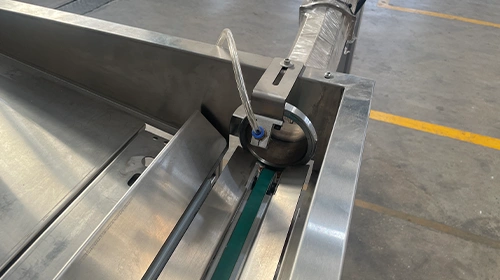

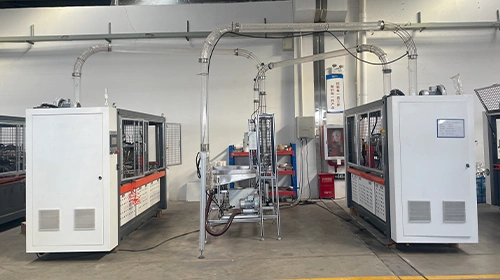

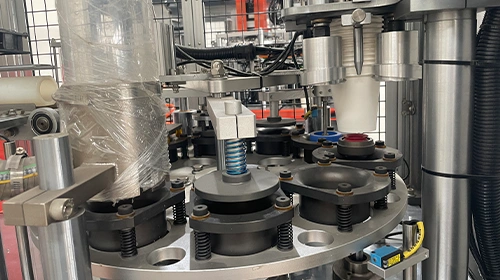

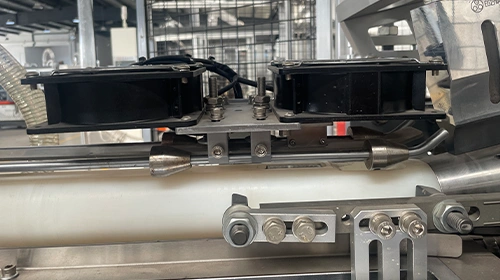

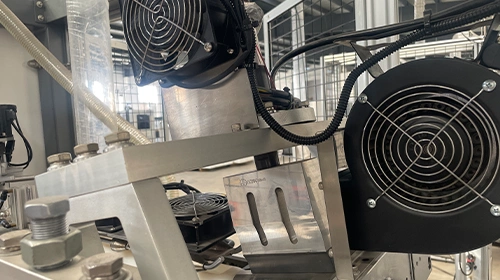

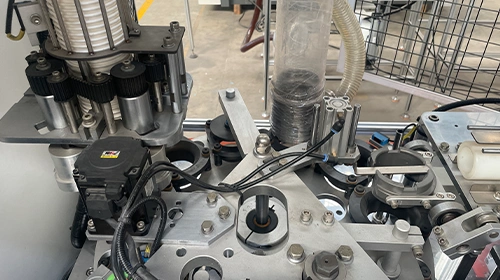

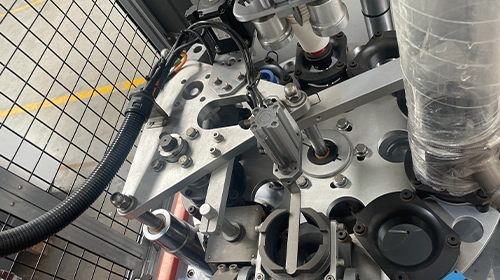

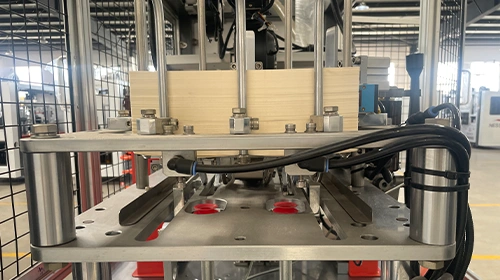

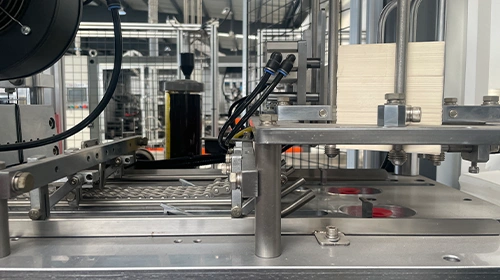

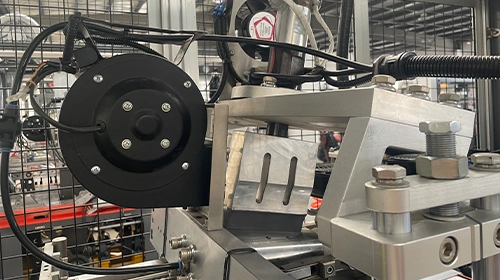

Machine Details

Related Products

XSL-16S

Fully Servo Paper Cup Machine

XSL-16T

Coffee Paper Cup Making Machine

XSL-180S

Fully Servo High Speed Paper Cup Machine

Frequently Asked Questions About Paper Cup Machine

What is the difference between full servo and cam-driven paper cup machines?

Full servo machines use independent servo motors for each station, offering faster changeovers and lower noise, ideal for flexible production. Cam-driven machines are mechanically robust, best for long runs of a single cup size with lower maintenance costs.

What cup sizes can your paper cup machines produce?

Our machines support 4–16 oz standard cup sizes. Custom tooling is available for non-standard sizes from 2 oz up to 24 oz.

Do you provide training for machine operation and maintenance?

Yes, we offer operator training and remote technical support. Comprehensive manuals and video guides are also provided.
