Fully Servo High Speed Paper Cup Machine

XSL-180S fully servo high speed paper cup machine uses independent servo control and PLC tracking to achieve stable 4-16 oz cup production with low defect rates and easy automation integration.

Machine Speed :

150-200 pcs/min
Paper Cup Sizes :

4OZ-16OZ
Rated Power :

35 Kw

Product Description

Full-servo drive with PLC and photoelectric tracking ensures stable continuous output. Supports PE, PLA, and water-based coated paper. Max speed suitable for 4–16 oz cups. Durable structure, low maintenance, and easy integration with automatic packing machines for a fully automated line.

Machine Highlights

Full-Servo Drive Precision:

Independent servo motors with PLC control for smooth forming and low defect rate.

High-Speed Stability:

Produces 4–16 oz cups at high speed with consistent quality and minimal rejects.

Eco-Friendly Material Support:

Compatible with PE, PLA, and water-based coated paper for sustainable packaging.

Ready for Automation:

Easily connects with automatic cup packing machines for an end-to-end production line.

Technical Specifications

Model	XSL-180S
Paper Cup sizes	4OZ-16OZ

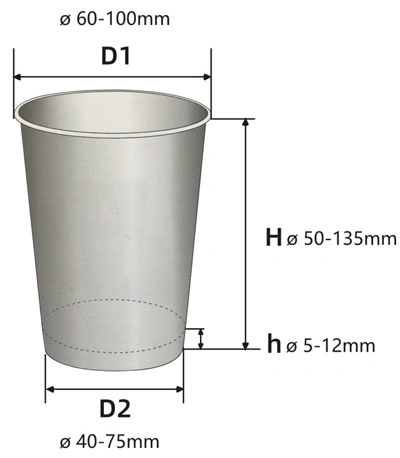

Paper Cup Forming Size
Upper Mouth Diameter	60-100mm
Cup Bottom Diameter	40-75mm
Forming Height	50-135mm
Machine Speed	150-200pcs/min
Machine Net Weigh	4000kg
Power Supply	380V 50Hz 3Phase
Rated Power	35Kw
Air Consumpion	0.6-0.8 Mpa
Machine Size	L3700W1400H2000mm
Paper Grams	150-380gsm single (double) PE/PLA paper

Related Products

XSL-16T

Coffee Paper Cup Making Machine

XSL-350T

Paper Cup Manufacturing Machine

XSL-320T

Paper Cup Glass Making Machine

Frequently Asked Questions About Paper Cup Machine

What is the difference between full servo and cam-driven paper cup machines?

Full servo machines use independent servo motors for each station, offering faster changeovers and lower noise, ideal for flexible production. Cam-driven machines are mechanically robust, best for long runs of a single cup size with lower maintenance costs.

What cup sizes can your paper cup machines produce?

Our machines support 4–16 oz standard cup sizes. Custom tooling is available for non-standard sizes from 2 oz up to 24 oz.

Do you provide training for machine operation and maintenance?

Yes, we offer operator training and remote technical support. Comprehensive manuals and video guides are also provided.
