Coffee Paper Cup Making Machine

XSL-16T Cam-Driven Paper Cup Machine delivers strong mechanical strength and consistent forming accuracy, ideal for standard 4–16 oz cup production.

Machine Speed :

130-150 pcs/min
Paper Cup Sizes :

4OZ-16OZ
Rated Power :

24 Kw

Product Description

Traditional barrel-indexing cam system ensures durability and low vibration. Automatic lubrication minimizes wear. PLC with photoelectric sensors monitors key steps in real time. Produces tight side-seals and smooth rims. A cost-effective upgrade for medium-scale factories.

Machine Highlights

Robust Cam Transmission:

Traditional barrel-indexing cam system delivers strong mechanical strength and long-term durability.

Stable & Consistent Forming:

Optimized cam and gear coordination reduces vibration, ensuring tight side-seals and smooth rims.

Low Maintenance Operation:

Automatic lubrication minimizes wear, while PLC monitoring reduces downtime.

Cost-Effective Upgrade:

Ideal for replacing older machines or expanding into medium-scale production.

Technical Specifications

Model	XSL-16T
Paper Cup sizes	4OZ-16OZ
Paper Cup Forming Size
Upper Mouth Diameter	60-100mm
Cup Bottom Diameter	40-75mm
Forming Height	50-135mm
Machine Speed	130-150pcs/min
Machine Net Weigh	3600kg
Power Supply	380V 50Hz 3Phase
Rated Power	24Kw (11kw/per hour)
Air Consumpion	0.6-0.8 Mpa
Machine Size	L3700W1400H2060mm
Paper Grams	150-380gsm single (double) PE/PLA paper

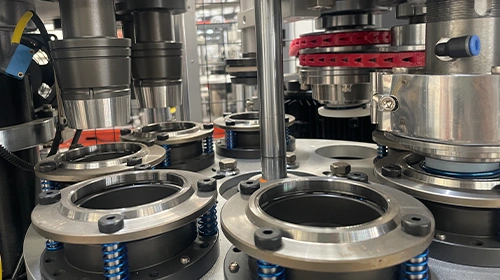

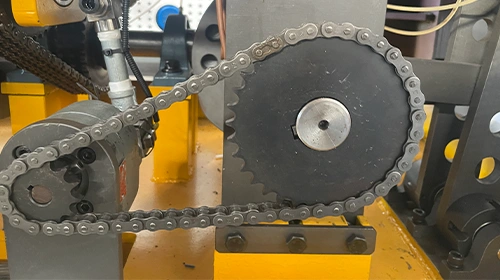

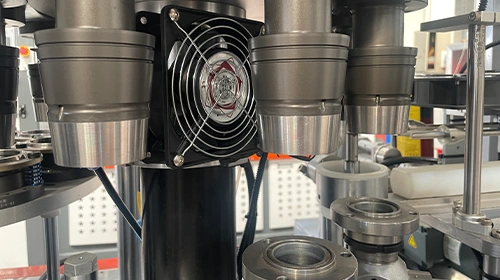

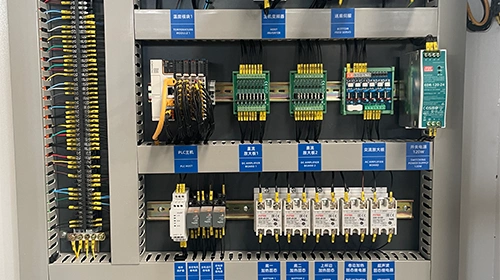

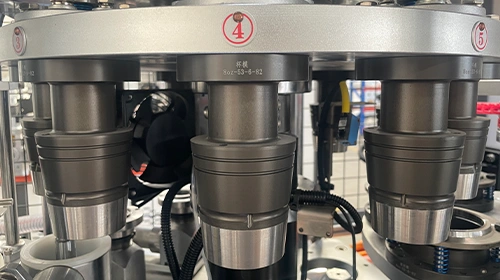

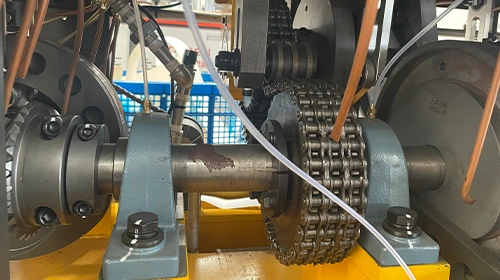

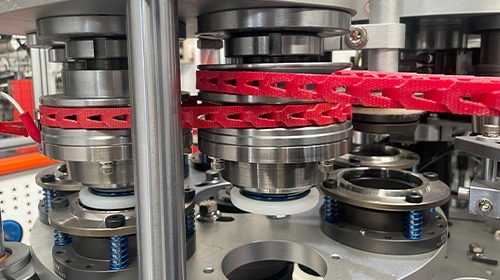

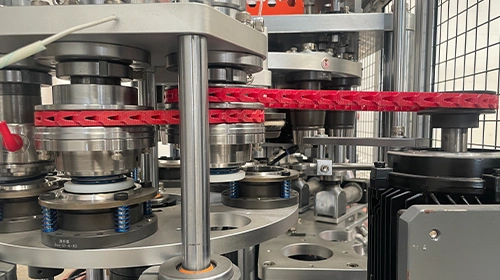

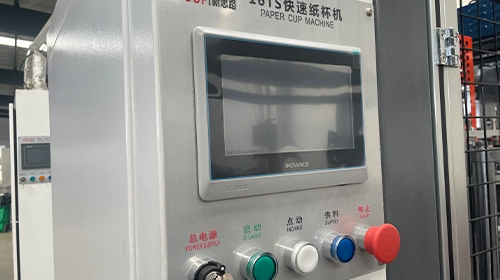

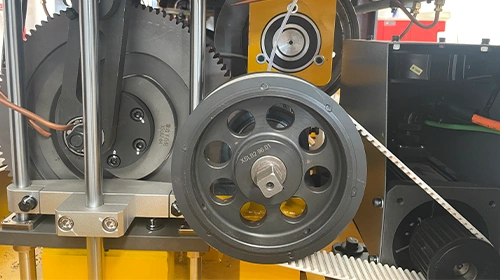

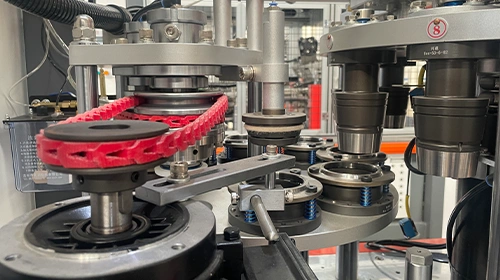

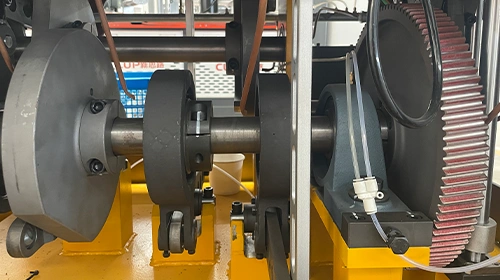

Machine Details

Related Products

XSL-16TS

Ice Cream Paper Cup Making Machine

XSL-180S

Fully Servo High Speed Paper Cup Machine

XSL-350T

Paper Cup Manufacturing Machine

Frequently Asked Questions About Paper Cup Machine

What is the difference between full servo and cam-driven paper cup machines?

Full servo machines use independent servo motors for each station, offering faster changeovers and lower noise, ideal for flexible production. Cam-driven machines are mechanically robust, best for long runs of a single cup size with lower maintenance costs.

What cup sizes can your paper cup machines produce?

Our machines support 4–16 oz standard cup sizes. Custom tooling is available for non-standard sizes from 2 oz up to 24 oz.

Do you provide training for machine operation and maintenance?

Yes, we offer operator training and remote technical support. Comprehensive manuals and video guides are also provided.
