Fully Servo Paper Cup Machine

XSL-16S Full Servo Paper Cup Machine, with full servo and PLC digital control, runs precisely and stably at high speed, significantly reducing maintenance costs.

Machine Speed :

140-170 pcs/min
Suitable Size :

4OZ-16OZ
Rated Power :

35 Kw

Product Description

High-speed, intelligent, and eco-friendly. Full servo motors with PLC digital control ensure precision, stability, and easy adjustment. Max speed 170 cups/min, suitable for 4-16 oz cups, including coffee, ice cream, and cold drinks. Boosts capacity, cuts labor costs, and ensures consistent quality—an ideal solution for modern production.

Machine Highlights

Full Servo & PLC Control:

Full servo motors with PLC digital control for precise, stable forming and easy parameter adjustment.

High Output Capacity:

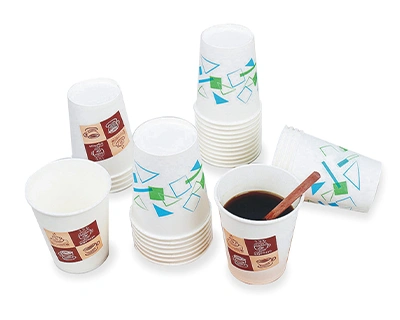

Reaches up to 170 cups/min, consistently producing 4–16 oz coffee, ice cream, and cold drink cups.

Intelligent Line Integration:

Seamlessly connects with vision inspection, sleeve machines, and automatic packers for a fully automated line.

Labor & Quality Efficiency:

High automation reduces manual labor, while stable quality ensures consistent product output.

Technical Specifications

Model	XSL-16S
Paper Cup Sizes	4OZ-16OZ

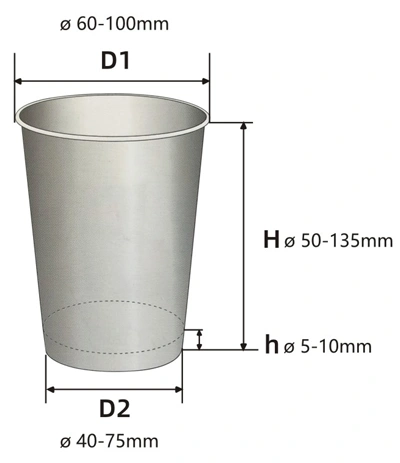

Paper Cup Forming Size
Upper Mouth Diameter	60-100mm
Cup Bottom Diameter	40-75mm
Forming Height	50-135mm
Machine Speed	140-170pcs/min
Machine NetWeight	3200kg
Power Supply	380V50Hz3Phase
Rated Power	35Kw(12.5kw/per hour)
Compressed Air	0.6-0.8 Mpa
Machine Size	L3400W1400H1900mm
Paper Grams	150-380gsm single(double) PE/PLApaper

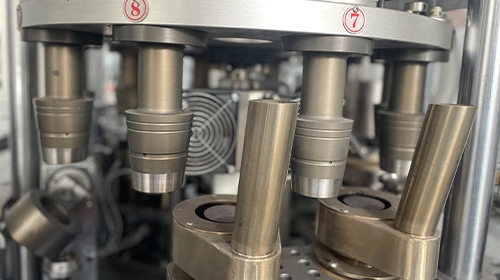

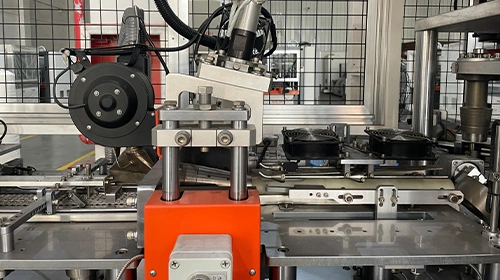

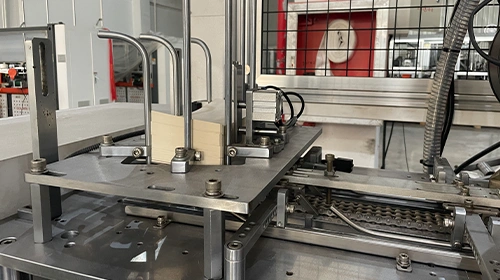

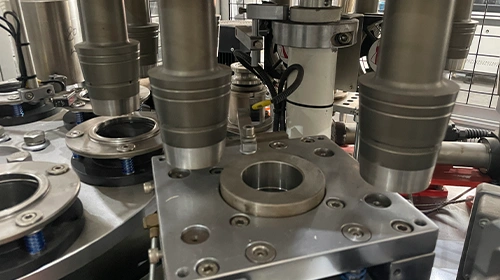

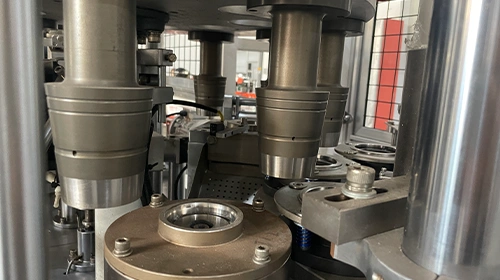

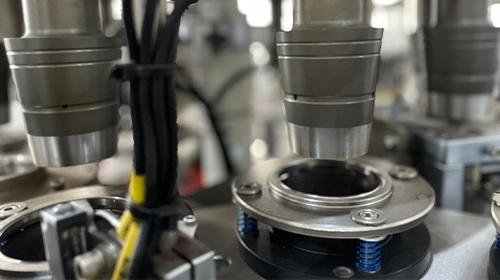

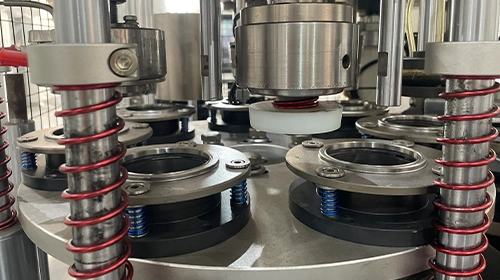

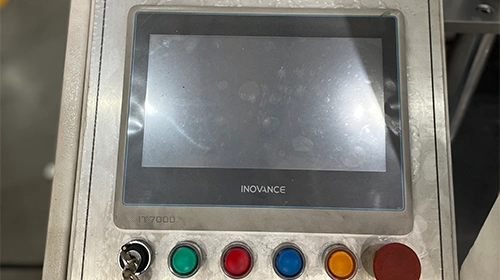

Machine Details

Related Products

XSL-16TS

Ice Cream Paper Cup Making Machine

XSL-16T

Coffee Paper Cup Making Machine

Frequently Asked Questions About Paper Cup Machine

What is the difference between full servo and cam-driven paper cup machines?

Full servo machines use independent servo motors for each station, offering faster changeovers and lower noise, ideal for flexible production. Cam-driven machines are mechanically robust, best for long runs of a single cup size with lower maintenance costs.

What cup sizes can your paper cup machines produce?

Our machines support 4–16 oz standard cup sizes. Custom tooling is available for non-standard sizes from 2 oz up to 24 oz.

Do you provide training for machine operation and maintenance?

Yes, we offer operator training and remote technical support. Comprehensive manuals and video guides are also provided.
