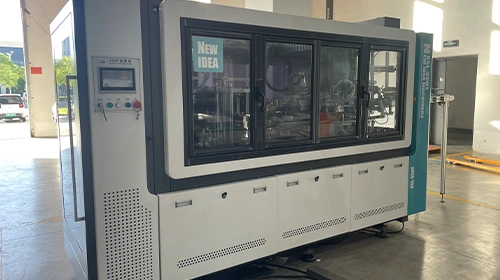

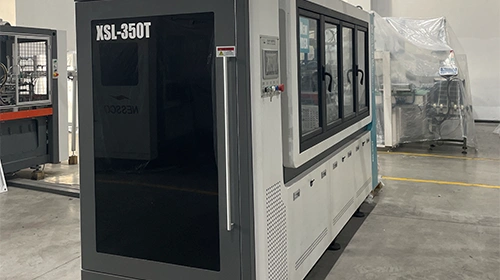

Paper Cup Manufacturing Machine

XSL-350T paper cup manufacturing machine uses a durable barrel cam system with PLC control and automatic lubrication, providing stable production for medium and large volume cup manufacturers.

Machine Speed :

130-160 pcs/min
Paper Cup Sizes :

4OZ-16OZ
Rated Power :

24 Kw

Product Description

Cam-driven design with PLC control and automatic lubrication delivers reliable long-term operation with reduced downtime. Produces tight, smooth, leak-free cups. Supports medium to large volumes. Ideal for beverage packaging plants needing high speed at an accessible price.

Machine Highlights

Barrel-Cam Indexing Stability:

Robust cam structure ensures precise movement and strong forming stability.

Continuous Long-Run Production:

Automatic lubrication and PLC monitoring keep downtime low for medium to large volumes.

Optimized Forming Process:

Produces tight, smooth, and leak-free cups with consistent side-wall and bottom quality.

Competitive Cost Performance:

High-speed output at an accessible price point for value-conscious manufacturers.

Technical Specifications

Model	XSL-350T
Paper Cup sizes	4OZ-16OZ
Paper Cup Forming Size
Upper Mouth Diameter	60-95mm
Cup Bottom Diameter	40-75mm
Forming Height	50-135mm
Machine Speed	130-160pcs/min
Machine Net Weigh	4000kg
Power Supply	380V 50Hz 3Phase
Rated Power	24Kw
Air Consumpion	0.6-0.8 Mpa
Machine Size	L4200W1500H2200mm
Paper Grams	150-380gsm single (double) PE/PLA paper

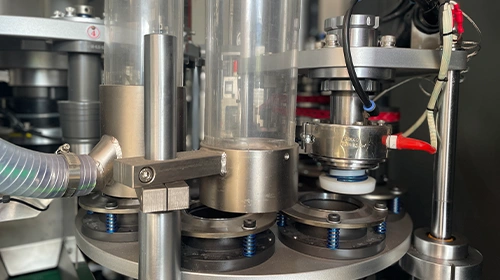

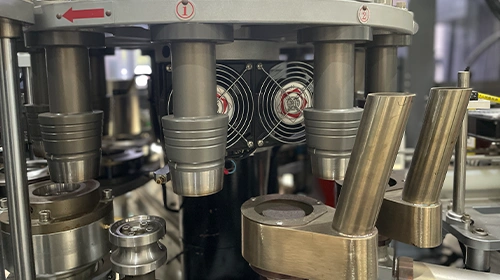

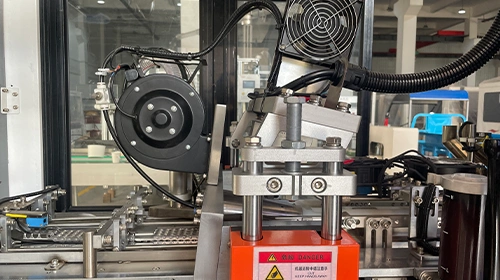

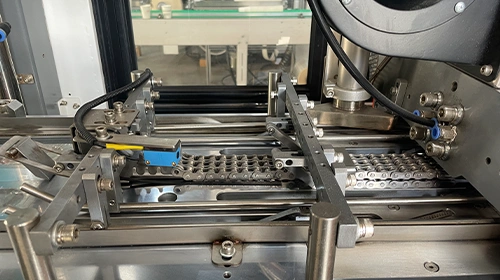

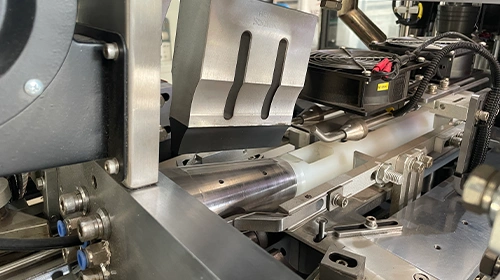

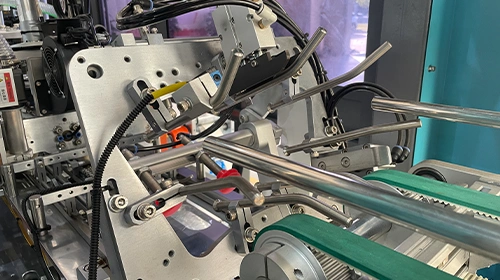

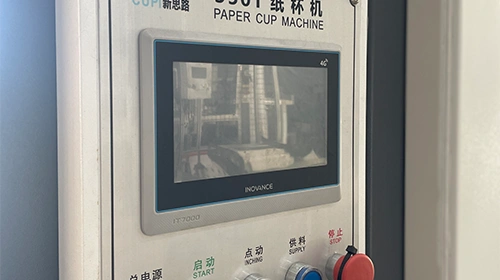

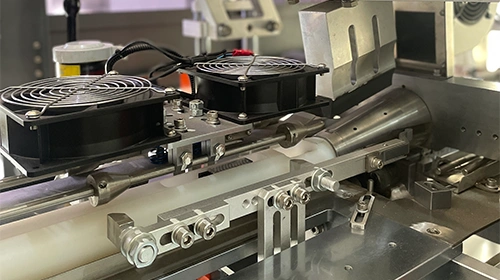

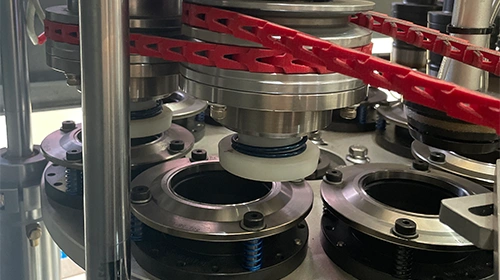

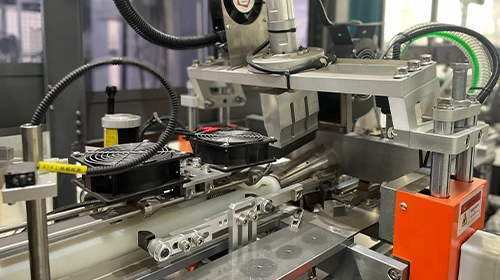

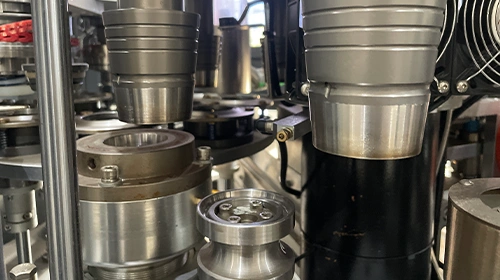

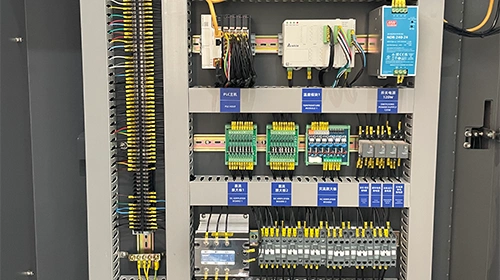

Machine Details

Related Products

XSL-180S

Fully Servo High Speed Paper Cup Machine

XSL-320T

Paper Cup Glass Making Machine

XSL-750T/750W

High Speed Horizontal Paper Cup Machine

Frequently Asked Questions About Paper Cup Machine

What is the difference between full servo and cam-driven paper cup machines?

Full servo machines use independent servo motors for each station, offering faster changeovers and lower noise, ideal for flexible production. Cam-driven machines are mechanically robust, best for long runs of a single cup size with lower maintenance costs.

What cup sizes can your paper cup machines produce?

Our machines support 4–16 oz standard cup sizes. Custom tooling is available for non-standard sizes from 2 oz up to 24 oz.

Do you provide training for machine operation and maintenance?

Yes, we offer operator training and remote technical support. Comprehensive manuals and video guides are also provided.
