200-280 pcs/min
6OZ-24OZ
50 Kw
XSL-750T is the latest high-speed horizontal paper cup machine developedby our company, which is determined by the actual material and providesProduction efficiency of up to 250 paper cups per minute. The entire machineis controlled by PLC+servo motion, making it easy to operate, full rangephotoelectric tracking, servo feeding controllable. The mold for producingpaper cups can be changed, and the cups. The capacity ranges from 6 ounces
to 24 ounces.
Optimized cup transfer path reduces vibration, enabling stable operation up to 280 cups/min.
Covers large cups from medium to jumbo sizes with consistent smooth rims and leak-proof bottoms.
Switch between 6 oz and 24 oz rapidly – ideal for diverse product lines and high-mix orders.

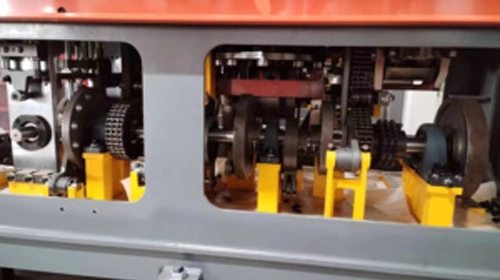

Heavy-duty construction and spray lubrication ensure long-term durability for continuous mass production.
| Model | XSL-750T | XSL-750W | |
| Paper Cup sizes | 6OZ-24OZ | 6OZ-24OZ |  |

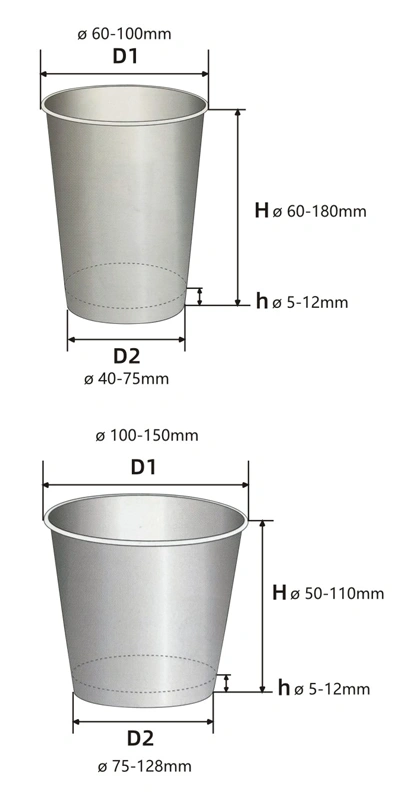

| Paper Cup Forming Size | |||
| Upper Mouth Diameter | 60-100mm | 100-150mm | |
| Cup Bottom Diameter | 40-75mm | 75-128mm | |
| Forming Height | 60-180mm | 50-110mm | |
| Machine Speed | 200-280pcs/min | 180-220pcs/min | |
| Machine Net Weigh | 7800kg | 7800kg | |
| Power Supply | 380V 50Hz 3Phase | 380V 50Hz 3Phase | |
| Rated Power | 50Kw | 50Kw | |
| Air Consumpion | 0.6-0.8 Mpa | 0.6-0.8 Mpa | |
| Machine Size | L3400*W1400*H1900mm | L3400*W1400*H1900mm | |
| Paper Grams | 150-380gsm single(double) PE/PLA paper |
150-380gsm single(double) PE/PLA paper |
