Paper Salad Bowl Machine

XSL-2000S paper salad bowl machine combines servo feeding, PLC control and hygienic desktop structure for accurate production of 16-46 oz salad and food bowls.

Machine Speed :

60-90 pcs/min
Paper Cup Sizes :

16OZ-46OZ
Rated Power :

30 Kw

Product Description

Hygienic desktop design with enclosed, automatically lubricated transmission. PLC control, photoelectric tracking, and servo feeding ensure consistent output for 16–46 oz salad bowls. Optional vision inspection for automatic quality detection.

Machine Highlights

Hygienic Desktop Structure:

Separates forming mold from enclosed transmission for cleaner operation and easier upkeep.

Servo Feeding & PLC Control:

Accurate forming and consistent output for 16-46 oz salad bowls.

Automatic Lubrication System:

Barrel-type indexing and automatic lubrication ensure long-term durability.

Optional Vision Inspection:

Integrates quality detection for automatic rejection of defective bowls.

Technical Specifications

Model	XSL-2000S
Paper Cup sizes	16OZ-46OZ

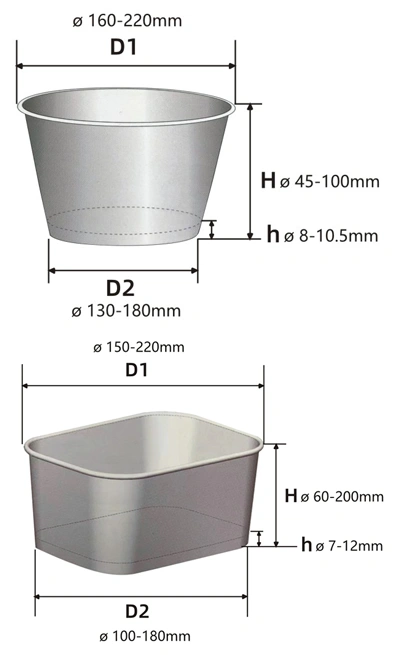

Paper Cup Forming Size
Upper Mouth Diameter	160-220mm
Cup Bottom Diameter	130-180mm
Forming Height	45-100mm
Machine Speed	60-90pcs/min
Machine Net Weigh	6800kg
Power Supply	380V 50Hz 3Phase
Rated Power	30Kw
Air Consumpion	0.6-0.8 Mpa
Machine Size	L4500W1600H2060mm
Paper Grams	260-400gsm single (double) PE/PLA paper
