Double Wall Paper Cup Forming Machine

XSL-16W double wall paper cup forming machine integrates servo feeding, PLC control and precise sleeve bonding technology to produce stable insulated cups with consistent quality.

Machine Speed :

100-120 pcs/min
Paper Cup Sizes :

4OZ-16OZ
Rated Power :

6 Kw

Product Description

Separates forming from transmission for clean, easy maintenance. Longitudinal shaft and indexing cam deliver stable, long-lasting performance. Servo feeding and photoelectric monitoring ensure consistent quality. Optional vision inspection enables automatic defect rejection.

Machine Highlights

Hygienic Tabletop Layout:

Separates forming from transmission for clean, easy-maintenance operation.

Servo Feeding & PLC Control:

Ensures precise forming and consistent sleeve bonding for double-wall, ripple, or insulated cups.

Durable Transmission Design:

Longitudinal shaft, indexing cam, and gear drive minimize wear and extend life.

Optional Vision Inspection:

Enables automatic rejection of defective cups, supporting fully automated workflows.

Technical Specifications

Model	XSL-16W paper cup sleeve machine
Paper Cup sizes	4OZ-16OZ

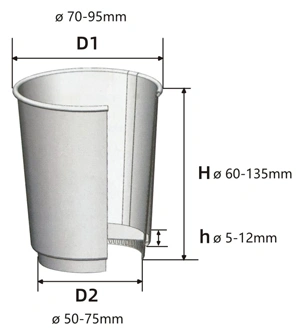

Paper Cup Forming Size
Upper Mouth Diameter	70-95mm
Cup Bottom Diameter	50-75mm
Forming Height	60-135mm
Machine Speed	100-120pcs/min
Machine Net Weigh	2800kg
Power Supply	380V 50Hz 3Phase
Rated Power	6Kw
Air Consumpion	0.6-0.8 Mpa
Machine Size	L3300W950H2000mm
Paper Grams	150-300gsm gray/white board paper

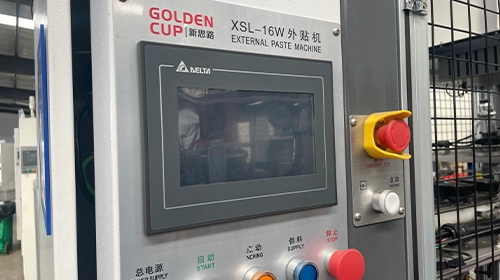

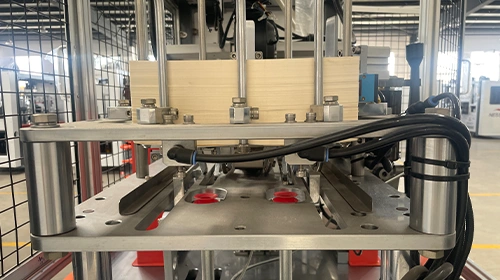

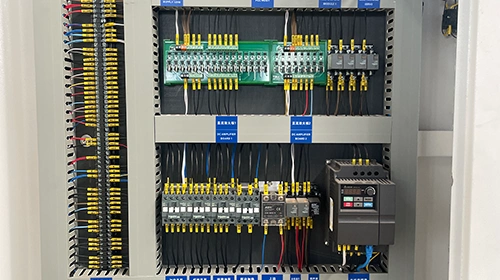

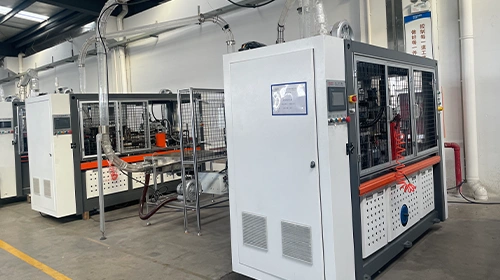

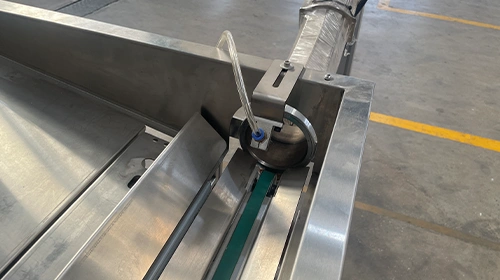

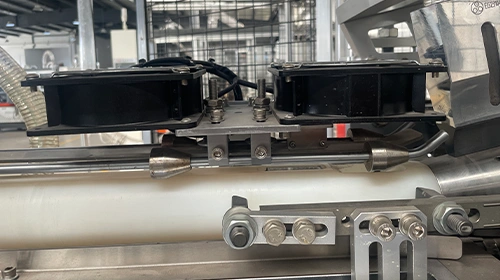

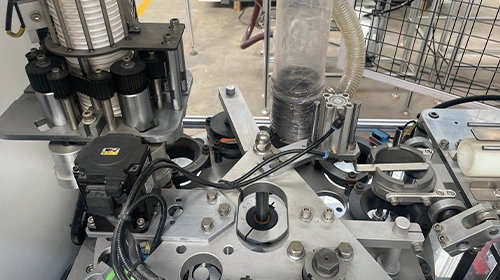

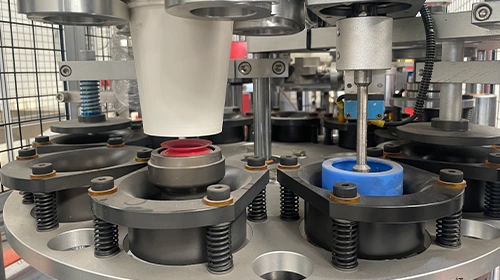

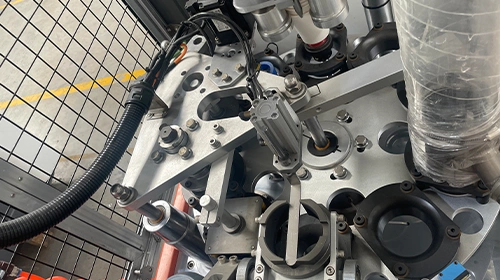

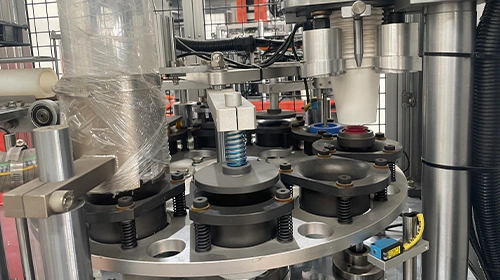

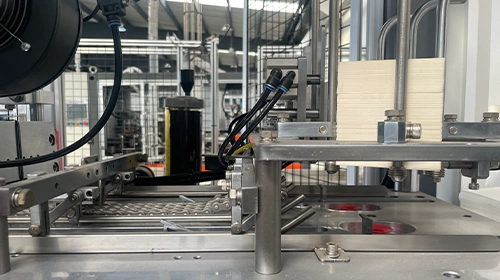

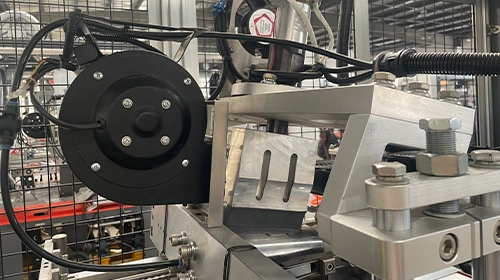

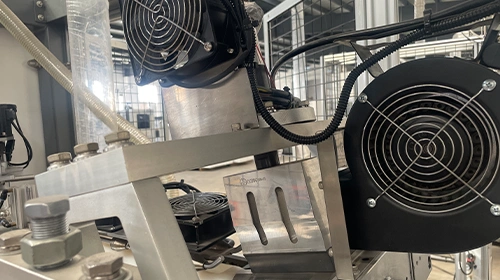

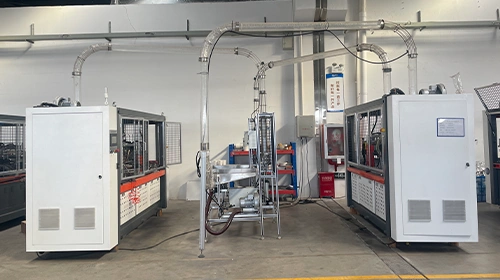

Machine Details

Related Products

XSL-2000S

Paper Salad Bowl Machine

XSL-16SW

Fully Servo Paper Cup Sleeve Machine

XSL-700

Vertical Cup Packing Machine

Frequently Asked Questions About Double Wall Paper Cup Machine

What is a paper cup sleeve machine used for?

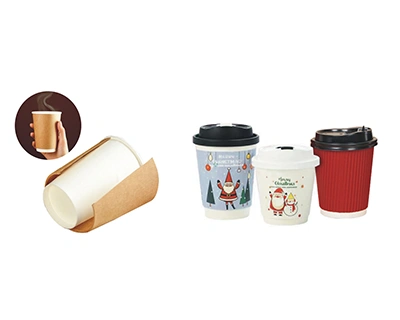

It produces double-wall cups by bonding an outer sleeve to an inner cup, creating an insulating air gap for hot beverages and enabling full-surface branding.

How do you ensure precise alignment of inner and outer cups?

Our machines feature precision guide rails and an optional vision alignment system, achieving registration accuracy of ±0.5 mm for consistent artwork positioning.

Does the machine support different sleeve heights?

Yes, we offer adjustable or swappable tooling to accommodate various sleeve heights, from short branding bands to full-wrap insulation sleeves.
