Product Description

The ST-4C 1000 Flexo Printing Machine is a high-performance stack type flexographic press specially designed for paper roll printing. It is widely used for printing PE/PLA coated paper, paper cups, paper bags and food packaging materials.
With stable structure, high printing precision and reliable components, it is an ideal choice for medium to large-scale paper packaging manufacturers.

Machine Highlights

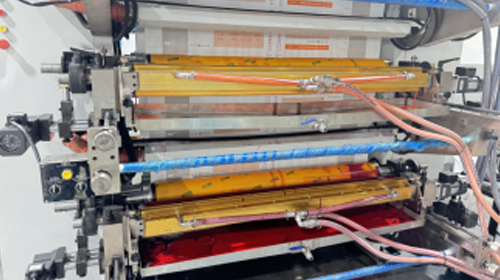

Four-Color Stack Printing

Four printing units support consistent multi-color reproduction for paper cup stock, coated paper and food packaging rolls.

Wide-Web Paper Handling

Supports material widths up to 1000 mm and printing widths up to 980 mm for flexible paper packaging production.

Stable Register and Ink Transfer

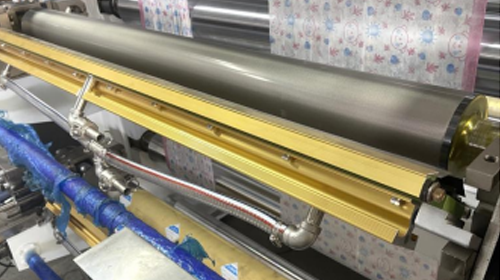

Ceramic anilox rollers, enclosed doctor blades and adjustable registration help maintain consistent ink transfer and print quality.

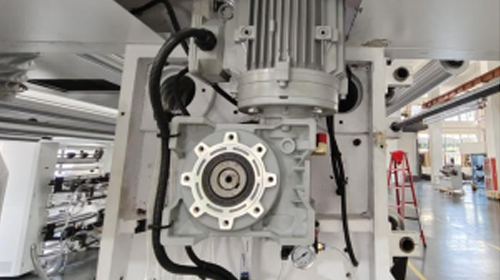

Continuous Roll Production

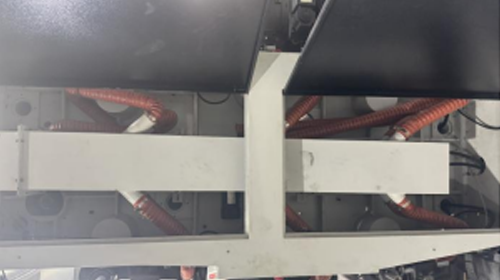

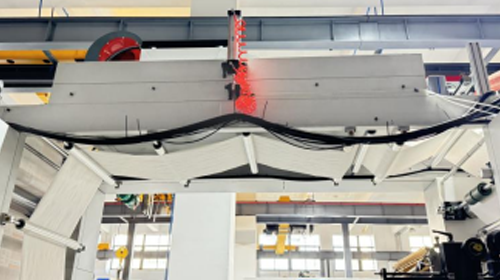

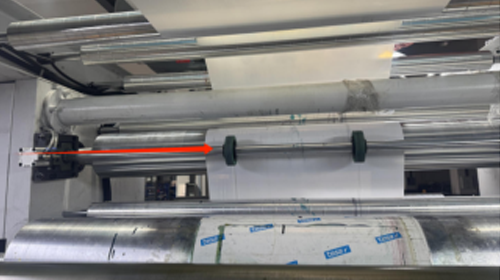

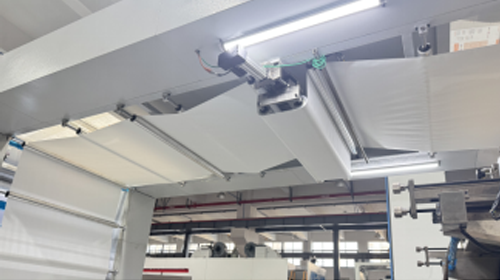

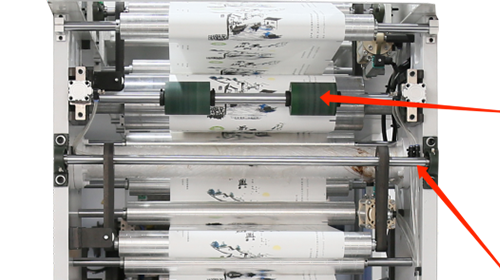

Printing speeds of 50–150 m/min, web guiding, traction control, inter-color drying and rewinding support continuous production.

Technical Specifications

Name	Parameter
Colours:	4 Colors
Max.Material Width:	1000mm
Max.Printing Width:	980mm
Printing Length:	300-1000mm
Printing Precision:	±0.2mm

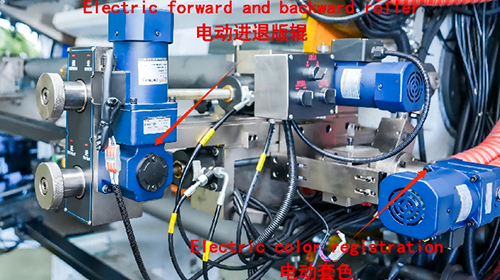

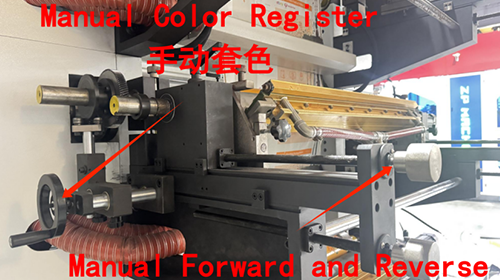

Color Register Method:	By Manual
Anilox Roller:	Ceramic Anilox Roller

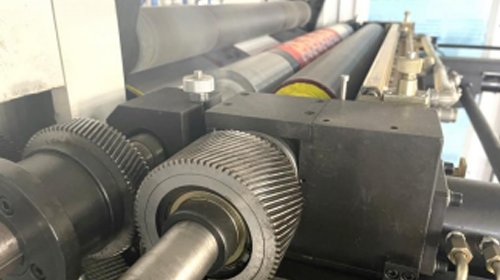

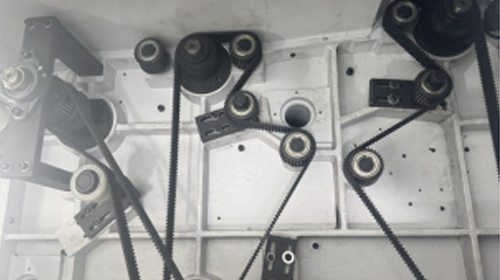

Transmission structure：	Synchronous belt drive
Machine Speed:	50-180m/min
Printing Speed:	50-150m/min
Diameter Of The Material Roll:	≤1200mm
Air Shaft:	￠76mm*4
Total Machine Power:	40KW
Main Machine Frame：	Cast Iron Thickness 75mm
Gear Accuracy	Level 5
